How to port forward a router
Below is a 6-step summary to port forward your router to enable RTSP for CCTV systems:

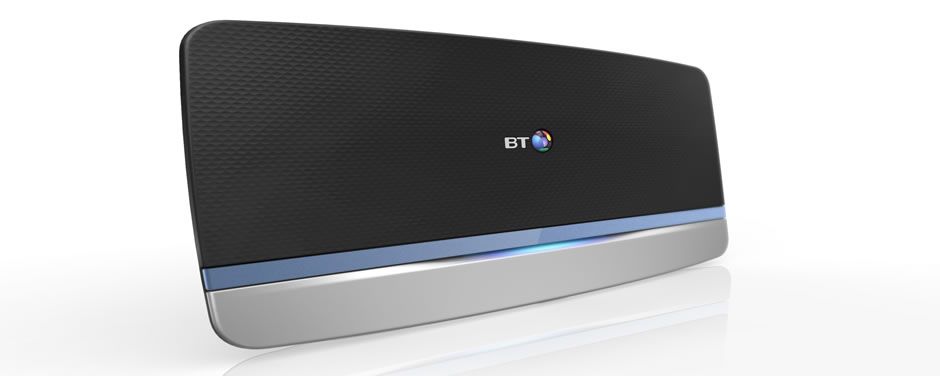

- Access Your Router: Log into your router’s web interface using its IP address and your administrator credentials. your router local IP address is normally 192.168.0.1 or 192.168.1.1 or 192.168.1.254
2. Navigate to Port Forwarding section of you router: Locate the port forwarding or virtual server section under the advanced network settings.
3. Identify Device Details: Find your CCTV camera’s local IP address and note that the default RTSP port is 554 (or your custom port).
To find your CCTV system local IP address if download the SADP tool.

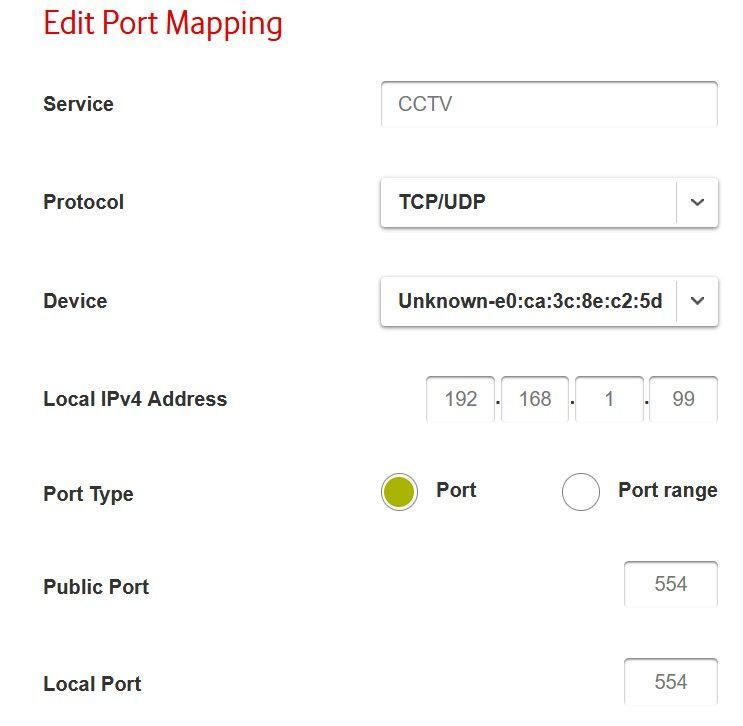

4. Create a Rule: Set up a new port forwarding rule mapping an external port (e.g., 554 or another available port) to the camera’s internal RTSP port and IP address.
5. Save & Reboot: Apply the changes and, if necessary, reboot the router to enforce the new settings.
6. Test the Connection: Use an RTSP-compatible player (like VLC) with a URL formatted as:
-
rtsp://<username>:<password>@<your_public_IP>:<forwarded_port>/Streaming/Channels/101/ - Verify the stream works and adjust firewall or firmware settings if needed.
